HELLAArt. 6DF 007 361-001
HELLA 6DF 007 361-001 Stop Light Switch

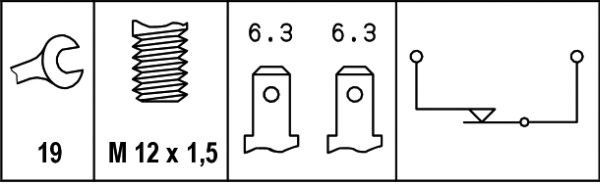

Thread Size: M12x1,5Operating Mode: ElectricSpanner Size: 19Number of pins: 2
4.46 EUR
incl. VAT
In stock
Specifications
Manufacturer article criteria| Thread Size | M12x1,5 |
| Operating Mode | Electric |
| Spanner Size | 19 |
| Number of pins | 2 |
| Switch Function | Normally Closed Contact |
| Brand | HELLA |
| Article number | 6DF 007 361-001 |
| Product group | Signal System |
Fits these vehicles
386 vehicle versions · 6 makes · 1967–2004 · manufacturer dataFIAT 28LANCIA 15ALFA ROMEO 6LADA 5SEAT 4SKODA 2
| Make | Model | Engine | Power | Years |
|---|---|---|---|---|
| ALFA ROMEO | 6 (119_) | 2.5 i.e. (119.AA, 119.AB) | 110 kW | 1983–1986 |
| ALFA ROMEO | ALFETTA (116_) | 1.6 (116.B1A) | 79 kW | 1975–1984 |
| ALFA ROMEO | ALFETTA (116_) | 1.8 (116.B2) | 90 kW | 1979–1984 |
| ALFA ROMEO | ALFETTA (116_) | 1.8 (11608) | 89 kW | 1979–1984 |
| ALFA ROMEO | ALFETTA (116_) | 2.4 TD (116.B3) | 70 kW | 1983–1984 |
| ALFA ROMEO | GTV (116_) | 2.0 (11636) | 96 kW | 1978–1986 |
| FIAT | 124 (124_) | 1200 (124A) | 48 kW | 1967–1975 |
| FIAT | 124 (124_) | 1400 Special (124A) | 55 kW | 1971–1975 |
| FIAT | 124 Coupe (124_) | 1600 Sport | 76 kW | 1972–1975 |
| FIAT | 124 Coupe (124_) | 1600 Sport | 80 kW | 1972–1976 |
| FIAT | 124 Spider (124_) | 1800 Sport (CS1) | 87 kW | 1972–1977 |
| FIAT | 126 (126_) | 650 | 18 kW | 1981–2000 |
| FIAT | 128 (128_) | 1.1 (128A) | 40 kW | 1969–1984 |
| FIAT | 131 (131_) | 2.0 Abarth Rally | 103 kW | 1976–1980 |
| FIAT | 131 Familiare/Panorama (131_) | 1.6 CL (AF1) | 55 kW | 1975–1978 |
| FIAT | 132 (132_) | 1.7 GLS (A1) | 79 kW | 1974–1975 |
| FIAT | ARGENTA (132_) | 2000 | 83 kW | 1978–1985 |
| FIAT | ARGENTA (132_) | 2500 Diesel | 53 kW | 1981–1985 |
| FIAT | DUCATO Platform/Chassis (280_) | 1.9 TD | 60 kW | 1989–1990 |
| FIAT | DUCATO Platform/Chassis (280_) | 2.5 TD | 68 kW | 1986–1990 |
| FIAT | DUCATO Van (280_) | 1.9 TD | 60 kW | 1989–1990 |
| FIAT | DUNA Weekend (146_) | 60 1.1 | 43 kW | 1987–1991 |
| FIAT | DUNA Weekend (146_) | 70 1.3 | 49 kW | 1987–1991 |
| FIAT | FIORINO Pick up (147_) | 1.0 | 37 kW | 1982–1987 |
| FIAT | PANDA (141_) | 1100 4x4 | 40 kW | 1995–2004 |
| FIAT | PANDA Hatchback Van (141_) | 1000 | 32 kW | 1986–1992 |
| FIAT | PANDA Hatchback Van (141_) | 750 | 25 kW | 1986–1992 |
| FIAT | REGATA Weekend (138_) | 100 1.6 (RF) | 74 kW | 1984–1990 |
| FIAT | REGATA Weekend (138_) | 75 1.5 | 55 kW | 1984–1989 |
| FIAT | RITMO (138_) | 1.1 | 40 kW | 1982–1987 |
| FIAT | RITMO (138_) | 1.5 | 60 kW | 1983–1987 |
| FIAT | RITMO Convertible (138_) | 50 1.3 | 50 kW | 1985–1987 |
| FIAT | TEMPRA (159_) | 2.0 i.e. (159.AP) | 83 kW | 1990–1996 |
| FIAT | X 1/9 (128_) | 1.5 (128AS1_) | 63 kW | 1978–1989 |
| LADA | 1200-1600 | 1200 L/S (2101) | 44 kW | 1970–1986 |
| LADA | 1200-1600 | 1300 (WAS21011) | 51 kW | 1974–1984 |
| LADA | SAMARA (2108, 2109, 2113, 2114) | 1100 | 39 kW | 1988–1994 |
| LADA | SAMARA (2108, 2109, 2113, 2114) | 1300 | 48 kW | 1986–1994 |
| LADA | SAMARA (2108, 2109, 2113, 2114) | 1300 | 50 kW | 1996–1999 |
| LANCIA | DELTA I (831_) | 1.9 Turbo DS (831AB.021) | 59 kW | 1986–1989 |
| LANCIA | DELTA I (831_) | 2.0 HF Integrale (831AB.019) | 122 kW | 1986–1988 |
| LANCIA | PRISMA (831_) | 1.5 (831AB) | 59 kW | 1986–1989 |
| LANCIA | PRISMA (831_) | 1.6 i.e. (831AB) | 80 kW | 1986–1989 |
| LANCIA | PRISMA (831_) | 1.6 i.e. Super (831AB) | 66 kW | 1987–1989 |
| LANCIA | THEMA (834_) | 2000 i.e. (834BV) | 85 kW | 1987–1992 |
| LANCIA | THEMA (834_) | 2500 Turbo DS (834AM) | 77 kW | 1988–1992 |
| LANCIA | THEMA (834_) | 2500 Turbo DS (834FE, 834LE) | 85 kW | 1992–1994 |
| LANCIA | THEMA (834_) | 8.32 (834F) | 158 kW | 1987–1989 |
| LANCIA | THEMA SW (834_) | 2000 i.e. 16V Turbo (834AC) | 133 kW | 1988–1990 |
| LANCIA | THEMA SW (834_) | 2500 Turbo DS (834D) | 74 kW | 1987–1990 |
| LANCIA | THEMA SW (834_) | 2500 Turbo DS (834FE, 834LE) | 85 kW | 1992–1994 |
| LANCIA | THEMA SW (834_) | 3000 V6 (834GD, 834FD) | 126 kW | 1992–1994 |
| LANCIA | Y10 (156_) | 1.1 Fire (156AG) | 40 kW | 1995–1995 |
| LANCIA | Y10 (156_) | 1.1 i.e. Fire All-wheel Drive (156AG) | 37 kW | 1992–1995 |
| SEAT | MARBELLA (28A) | 0.9 Cat | 29 kW | 1990–1996 |
| SEAT | MARBELLA Hatchback Van (028A) | 0.9 Cat | 29 kW | 1987–1993 |
| SEAT | RONDA (22A) | 1.2 | 44 kW | 1984–1986 |
| SEAT | RONDA (22A) | 1.4 | 54 kW | 1982–1988 |
| SKODA | FELICIA I (6U1) | 1.6 | 55 kW | 1995–1998 |
| SKODA | FELICIA I Pickup (6UF, 6U7) | 1.3 | 50 kW | 1997–2002 |
Showing 60 of 386 vehicle versions.
OE numbers
76 original numbers · 12 makesALFA ROMEO105 64 64 177105 64 64 177 01/00105 64 65 177105 64 65 177 01/00105 6464 1770 00105 6465 1770 00111111406491640679164124209417712241771244220470422047143456434345645467851686070185282304822
FERRARI406 7916412 4209417 7122417 7124422 0470422 0471434 5643434 5645467 8516 8823 0482 2
FIAT4064916406791641242094177122417712442204704220471434564343456454678516882304822
IVECO406791641242094345645504156184
KRAMER1000110882
LADA2101-03720-000002101-372-0000
LANCIA4064916406791641242094177122417712442204704220471434564343456454678516882304822
PEUGEOT4534.06
SEAT000 438 197 3115 939 0706U0 945 5156U0 945 515 ASE1 279 52. 00 0A
SKODA000 438 197 3115 939 0706U0 945 5156U0 945 515 ASE1 279 52. 00 0A
VW115 939 070438 197 36U0 945 5156U0 945 515 ASE 127952.000A
ZASTAVA0100967704177124
Replacements and equivalents
The same part under another brand's number
HELLA 6DF 007 361-001
About HELLA 6DF 007 361-001
Signal SystemHELLA 6DF 007 361-001 is a stop light switch with thread size M12x1,5. According to the manufacturer catalogue it fits 386 vehicle versions from FIAT, LANCIA, ALFA ROMEO, LADA, built 1967–2004. It replaces 76 original part numbers, including 105 64 64 177, 105 64 64 177 01/00, 105 64 65 177. One offer is available, at 4.46 EUR.
